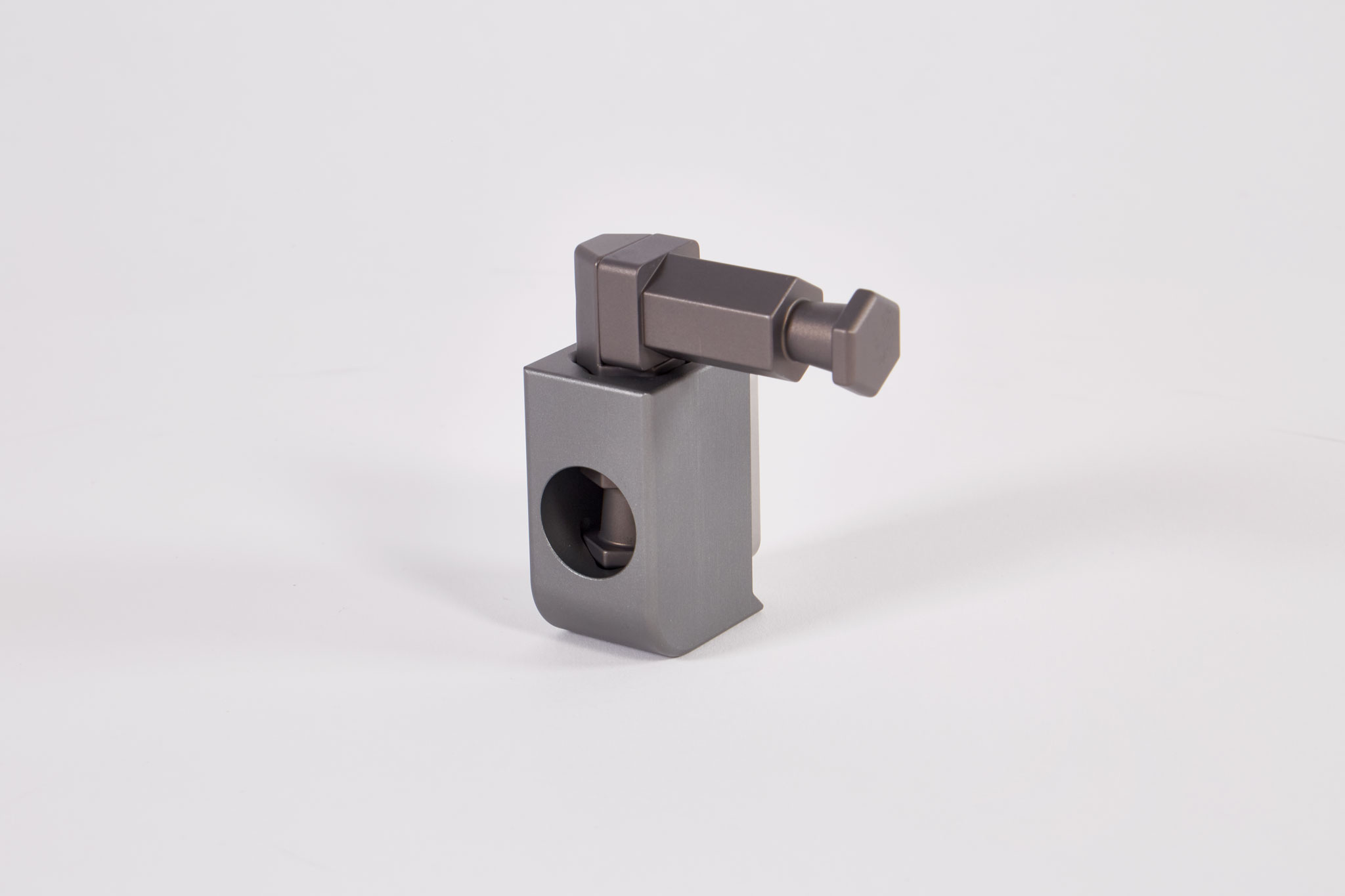

xSPINE Baby pin mount

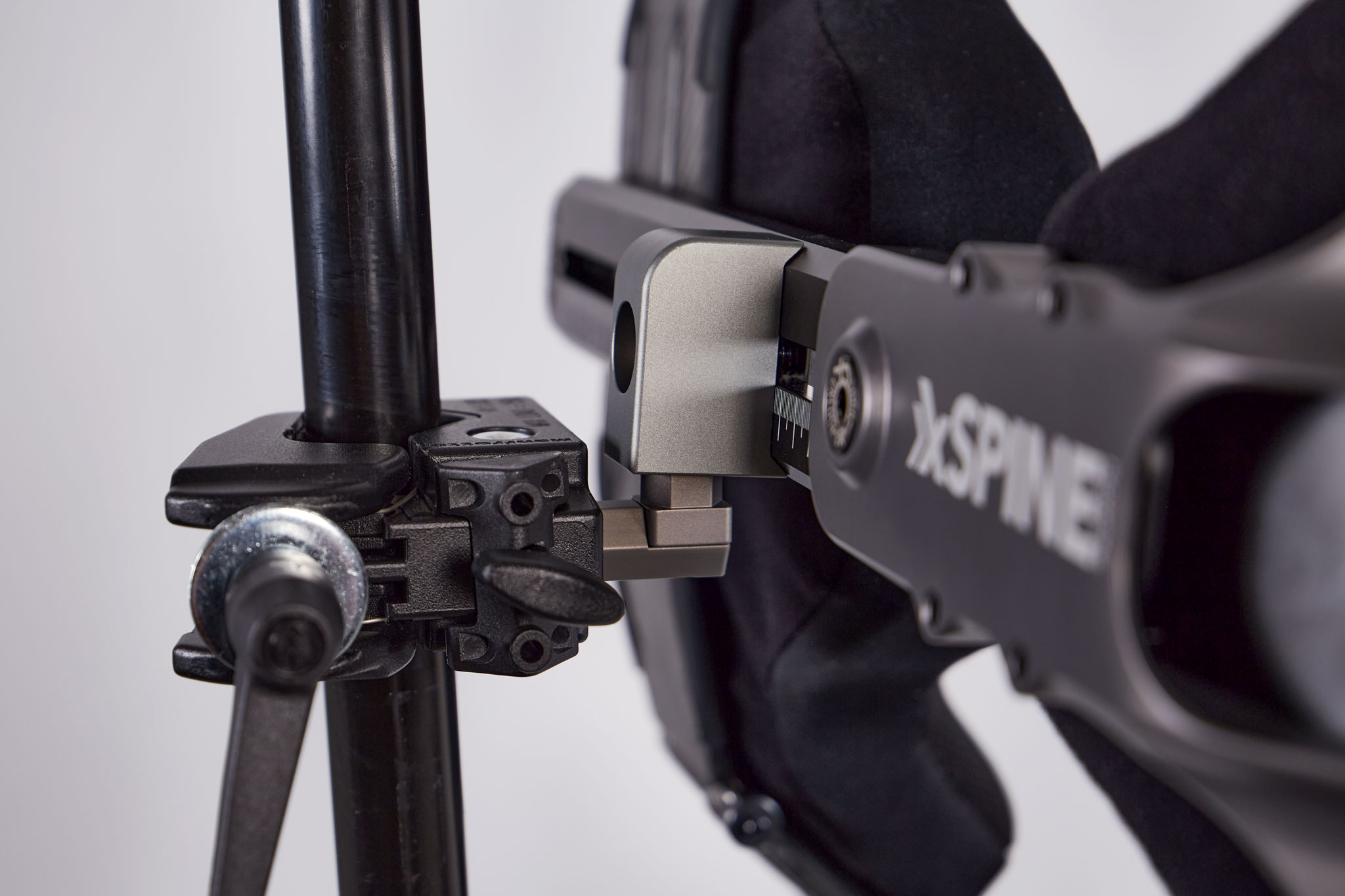

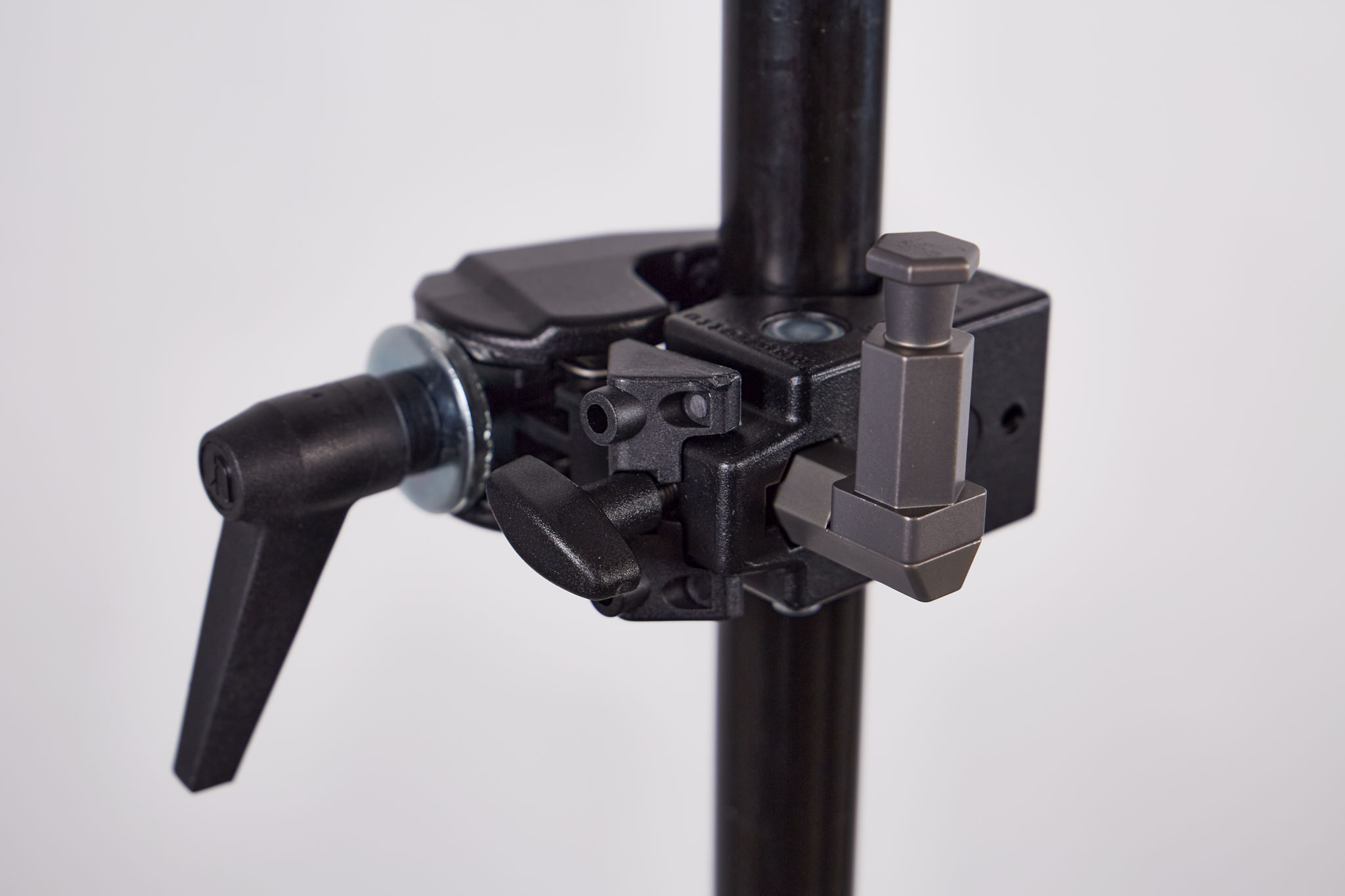

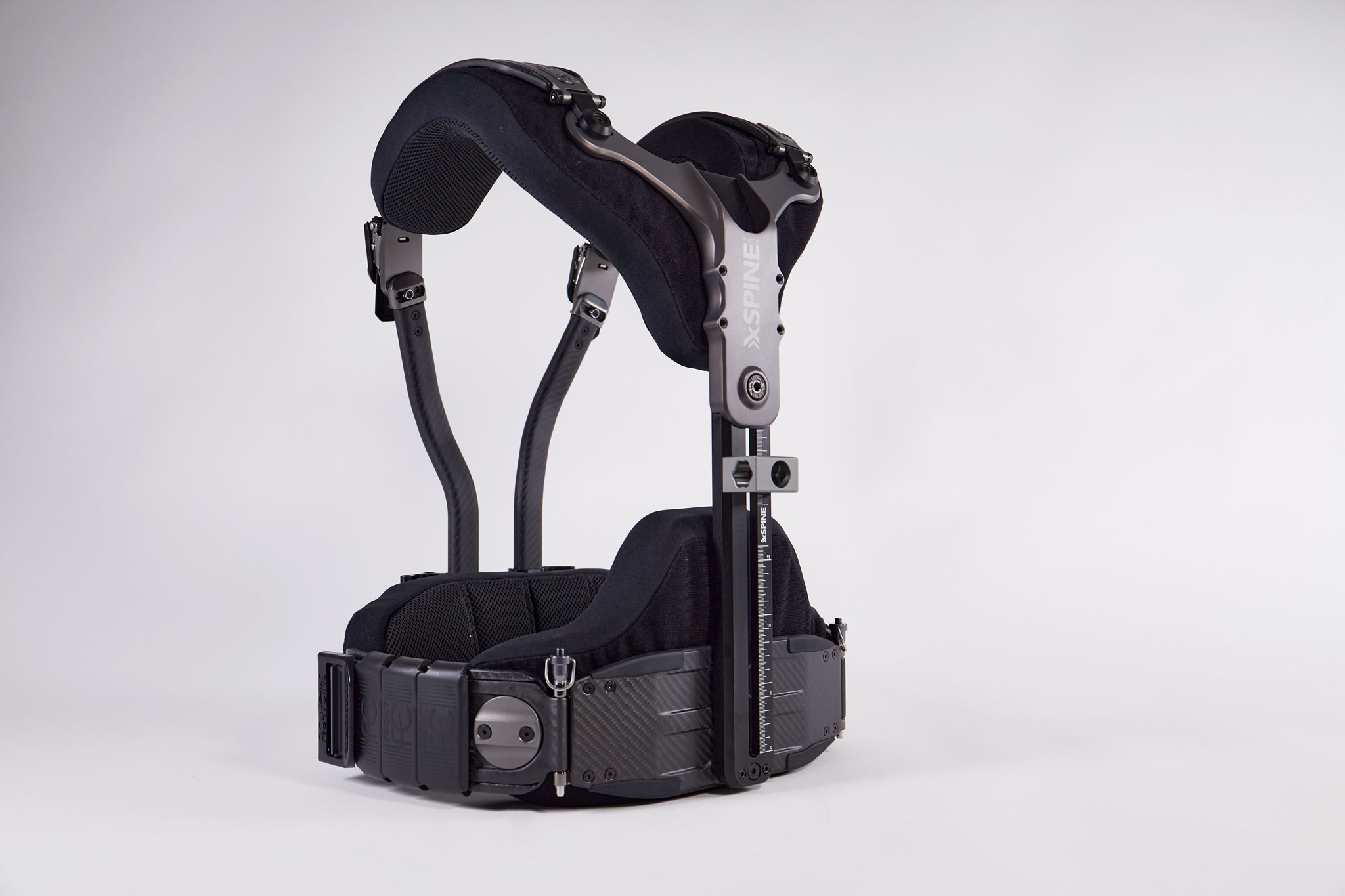

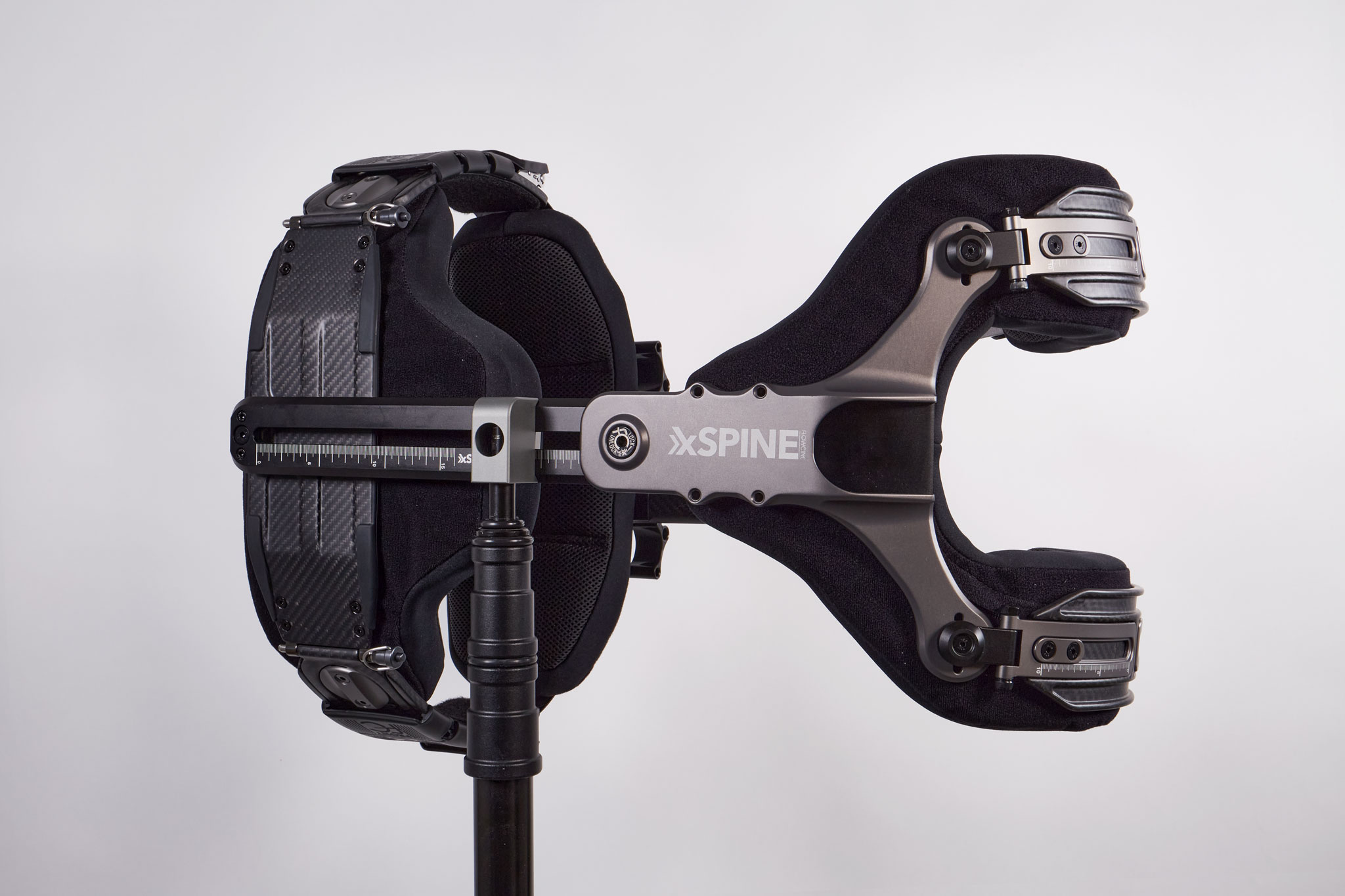

The xSPINE Baby pin mount allows the operator to store the xSPINE vest on basically any kind of pin not exceeding ⅝” / 15.8mm diameter. The xSPINE baby pin mount has a hexagon style of mounting, ensuring that the vest doesn’t freely rotate on pins following this hexagon pattern such as the included Flowcine L-shaped Baby pin (used together with, for example, Manfrotto super clamps).

MOUNTING and ADJUSTMENTS

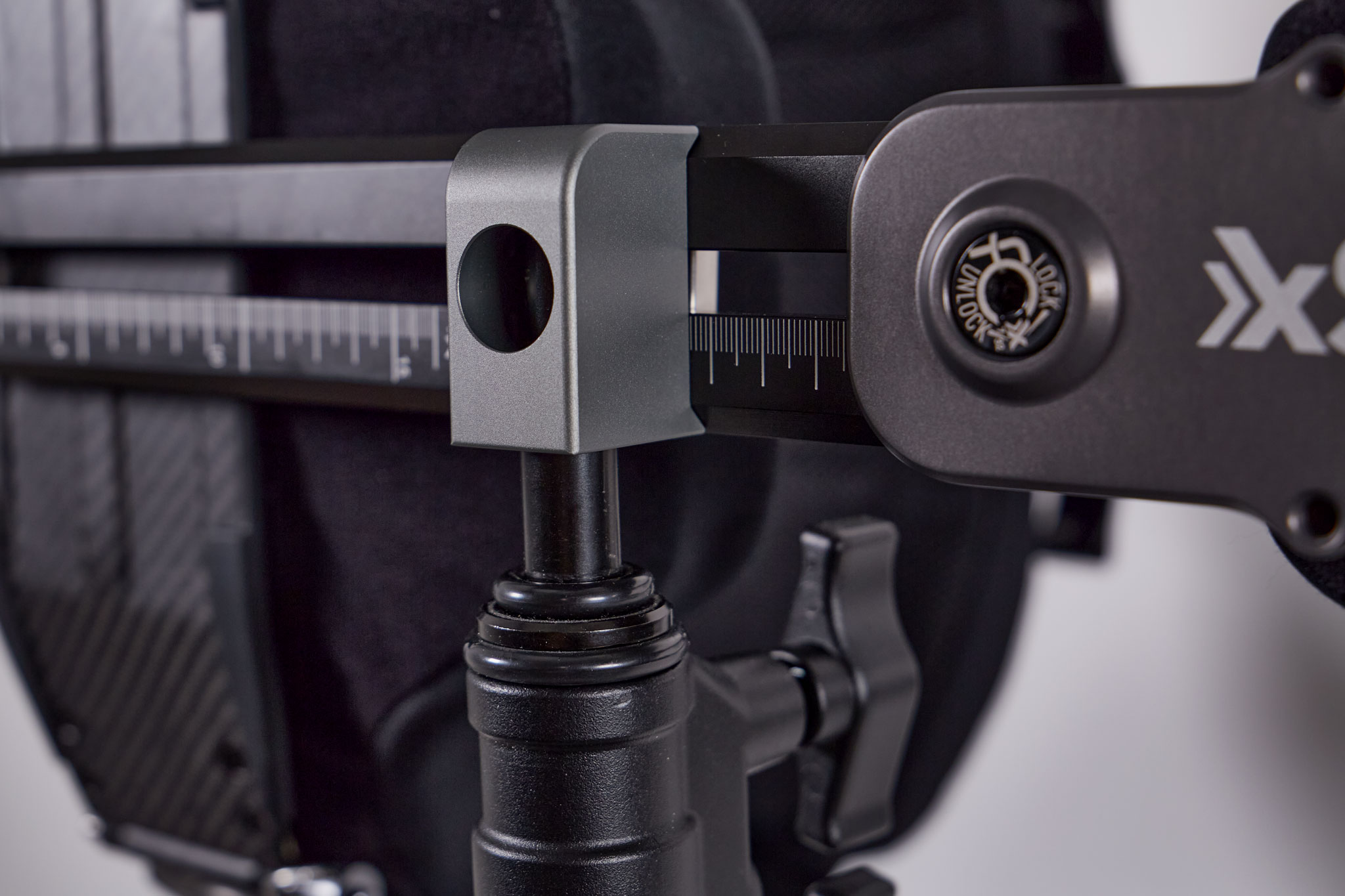

The xSPINE baby pin mount is easily secured with the low profile dovetail nut, and a ⅜”-16 UNC countersunk screw. Allowing the baby pin mount to be mounted anywhere on the dovetail at the back, in either left or right hole position. This allows a great deal of freedom placing the baby pin giving you clearance for any kind of other accessories mounted on the xSPINE.
