GLINK gimbal support xSPINE vest full set up

GLINK

CHOOSE PACKAGE AND SPRINGS:

Min: pick one spring

Med: pick two springs

Max: pick all springs

Price range: 8,610.00 € through 10,900.00 €

Package

Orange Springs

Black Springs

Grey Springs

Blue Springs

Clear

- +

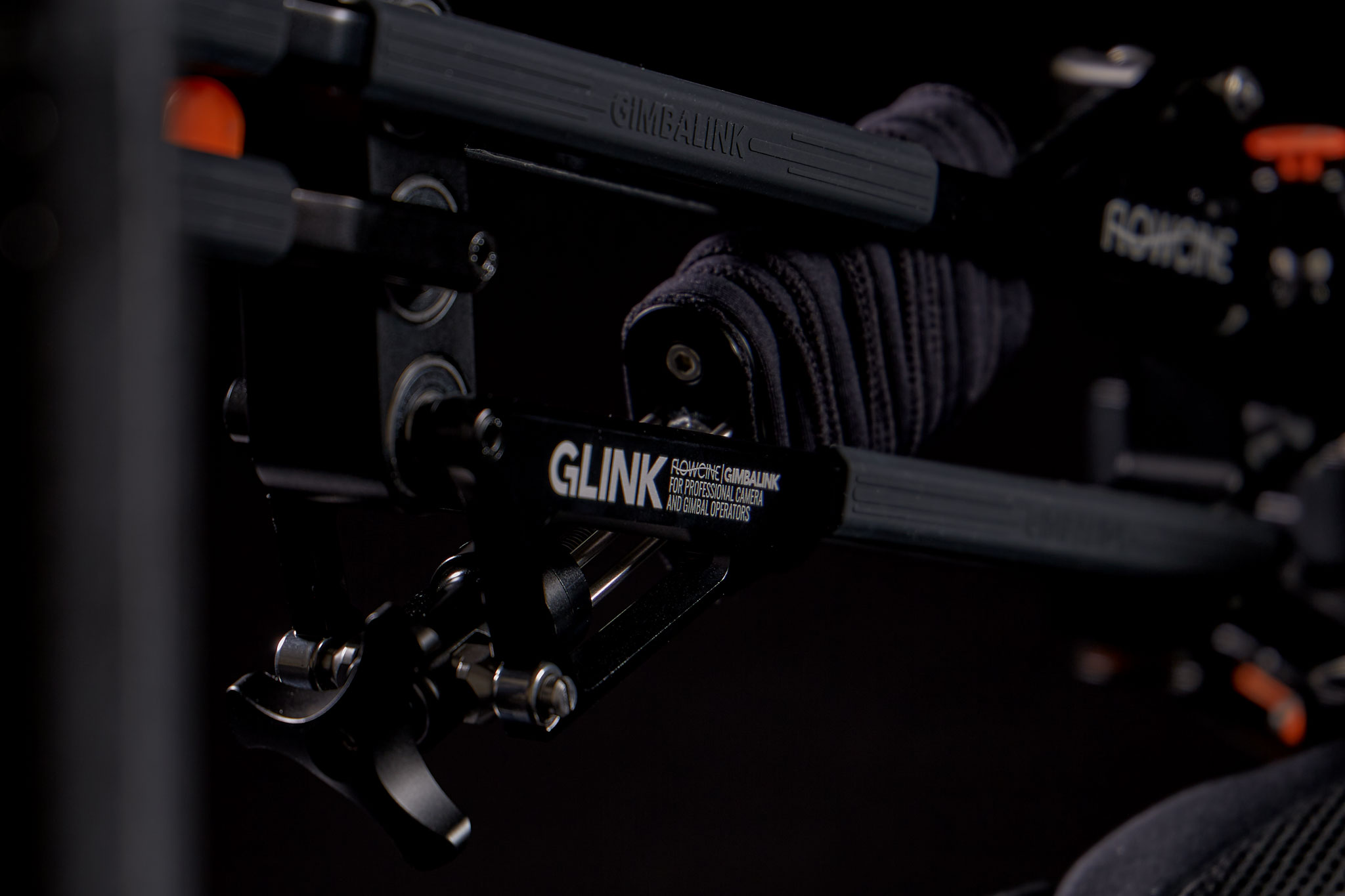

Introducing the GLINK

The GLINK is a professional gimbal operating system for those who look for the highest quality in stabilization and back support.

With the largest boom range on the market, the GLINK is capable of reaching an incredible height of 110cm and delivers the smoothest lateral panning across the body, giving the operator true freedom of movement.

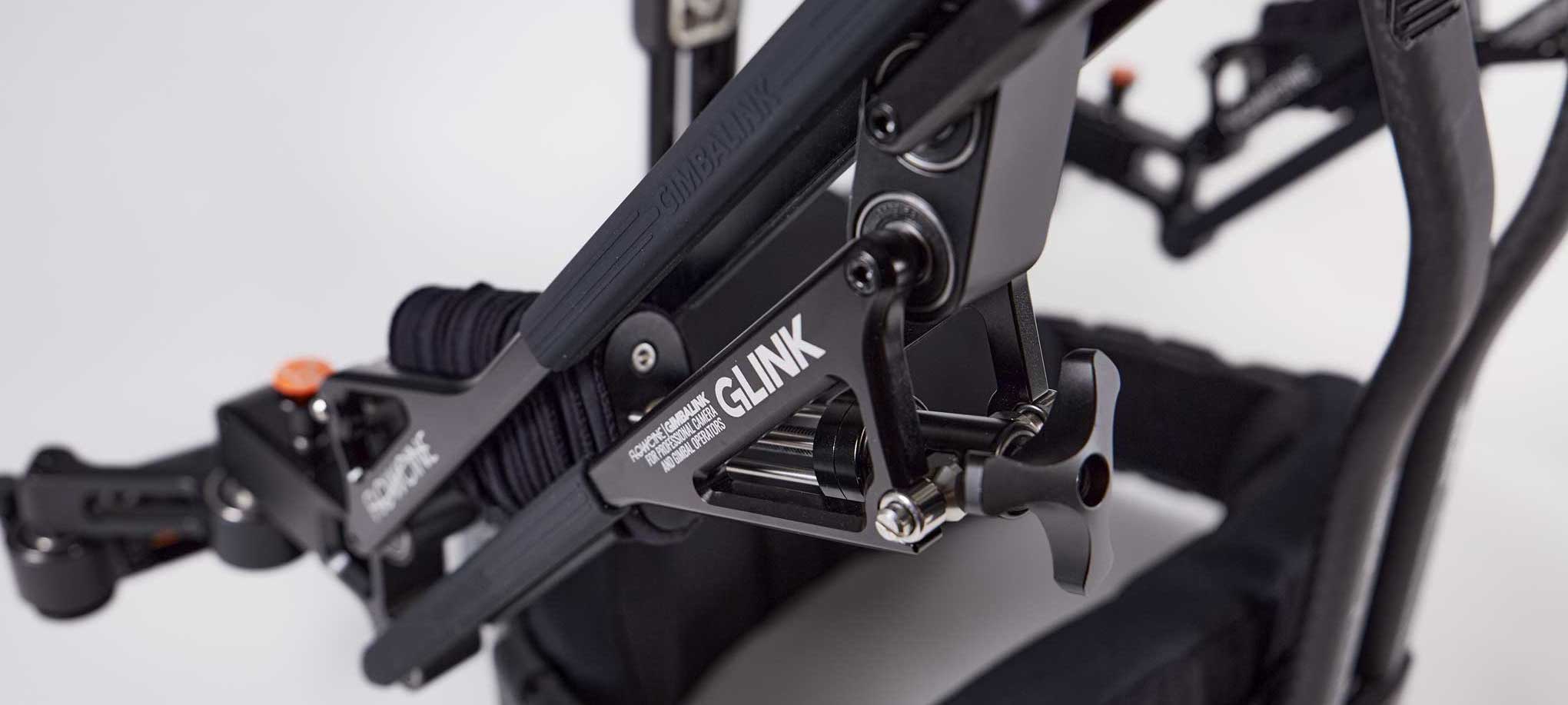

The GLINK can support all professional gimbal payloads with a lift range between 6 – 24.9kg (13 – 55.0lbs). The GLINK stabilization arms can be tuned via the GLINK spring cores so that the arms float in a close to horizontal position, with very little lift or resistance.

The GLINK can accommodate most popular electronic gimbals, such as the Freefly systems and the DJI Ronin 2, which can all be mounted directly to the GLINK over-slung or under-slung.

The GLINK can also support electronic heads such as the ARRI Trinity, Betz Wave, and MK-V Omega. It can also support fixed camera rigs in handheld mode with a separate telescopic handheld unit mount.

The GLINK comes with a docking station* that allows you to balance both your camera and gimbal in the system for effortless tilt motion and perfect balance.

* The docking station is not included in the GLINK Mini kit

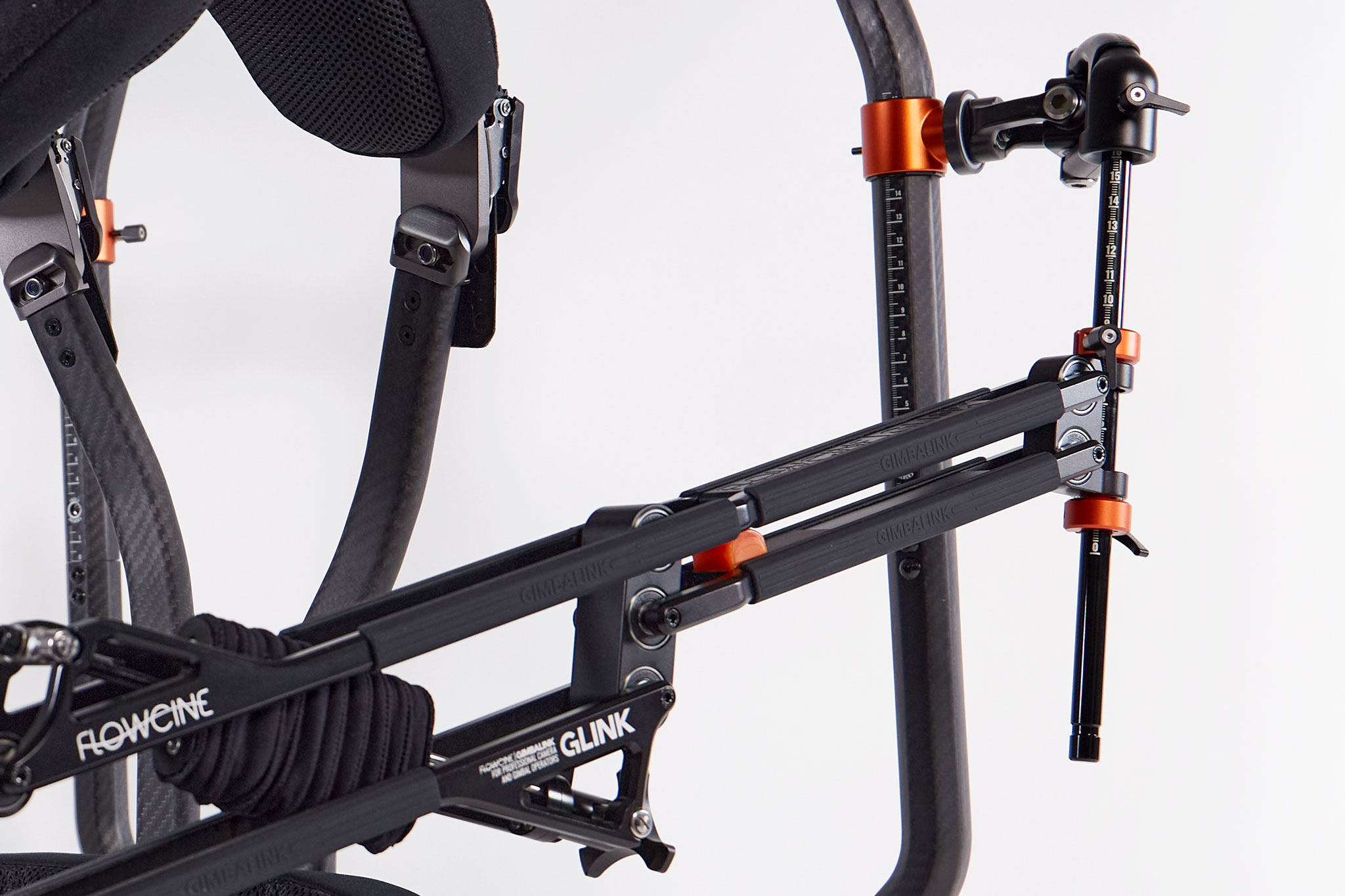

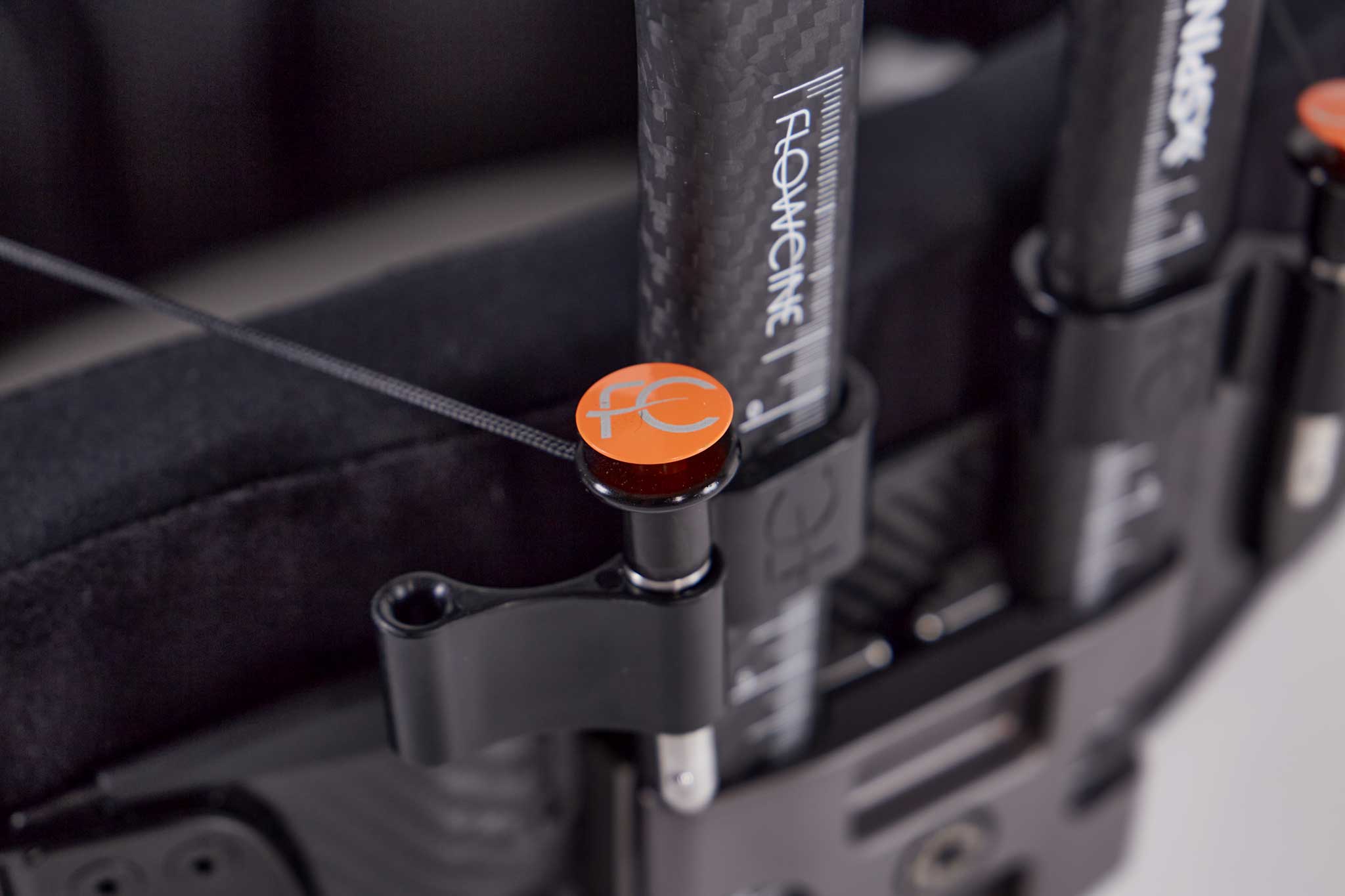

The arm posts can be adjusted for height and, depending on connection, either connect for high (over slung) or low mode (under slung) operation.

Both gimbal handles at each side can be adjusted tool-less on the top ring to allow perfect tilting balance of your camera and gimbal.

The MoVI/R2 mount allows for further dovetail plate balancing, allowing the operator to shift the fore and aft placement of the gimbal for precise 100% tilting balance.

Monitors, batteries and other accessories can be mounted via either the monitor clamps and/or the CF Ring foot, all around the CF Ring at any desired position.
All those features allow for a close to perfectly balanced system that requires very little effort to control, and lets the operator concentrate on the shot.

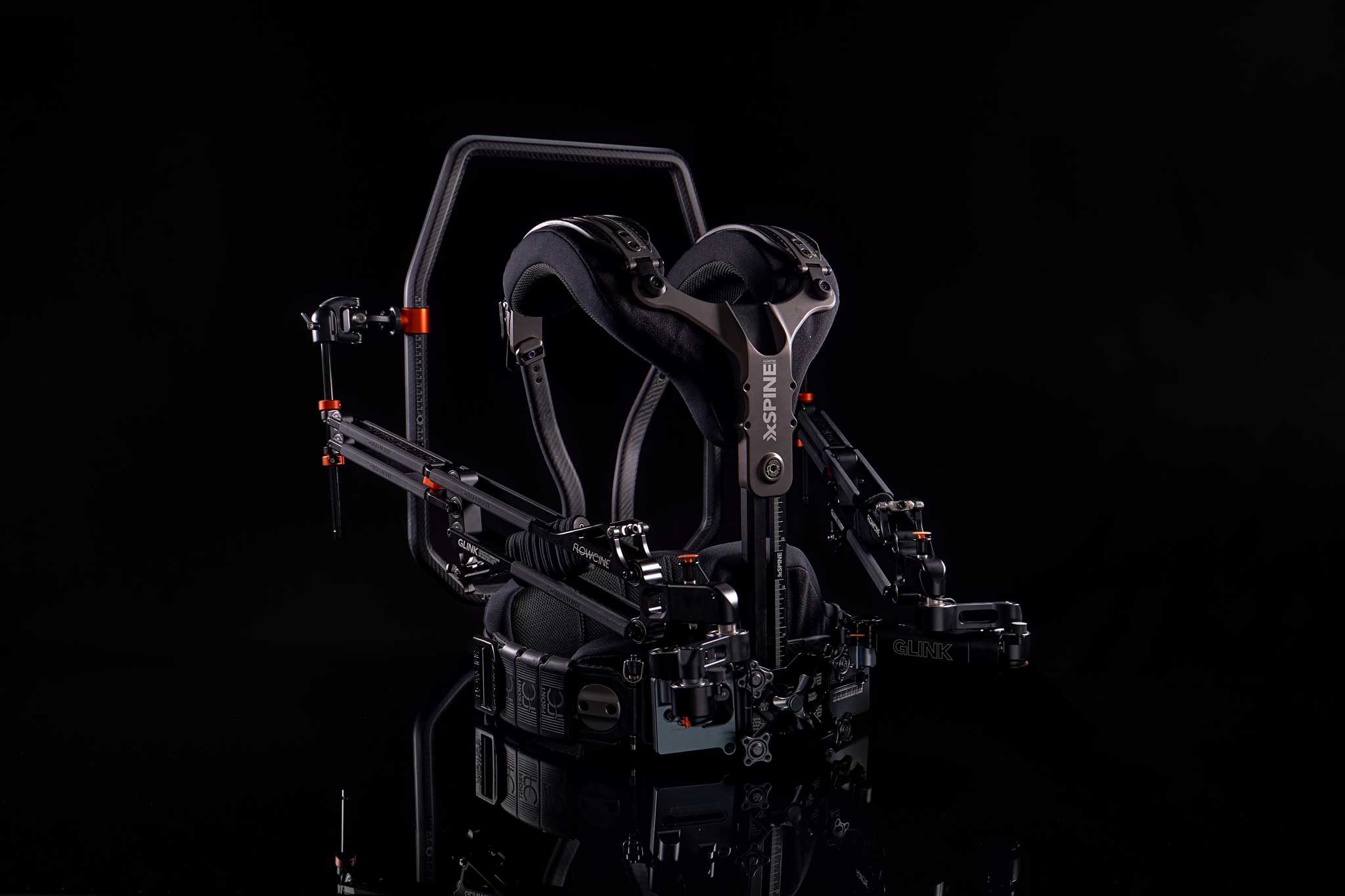

xSPINE Universal Vest

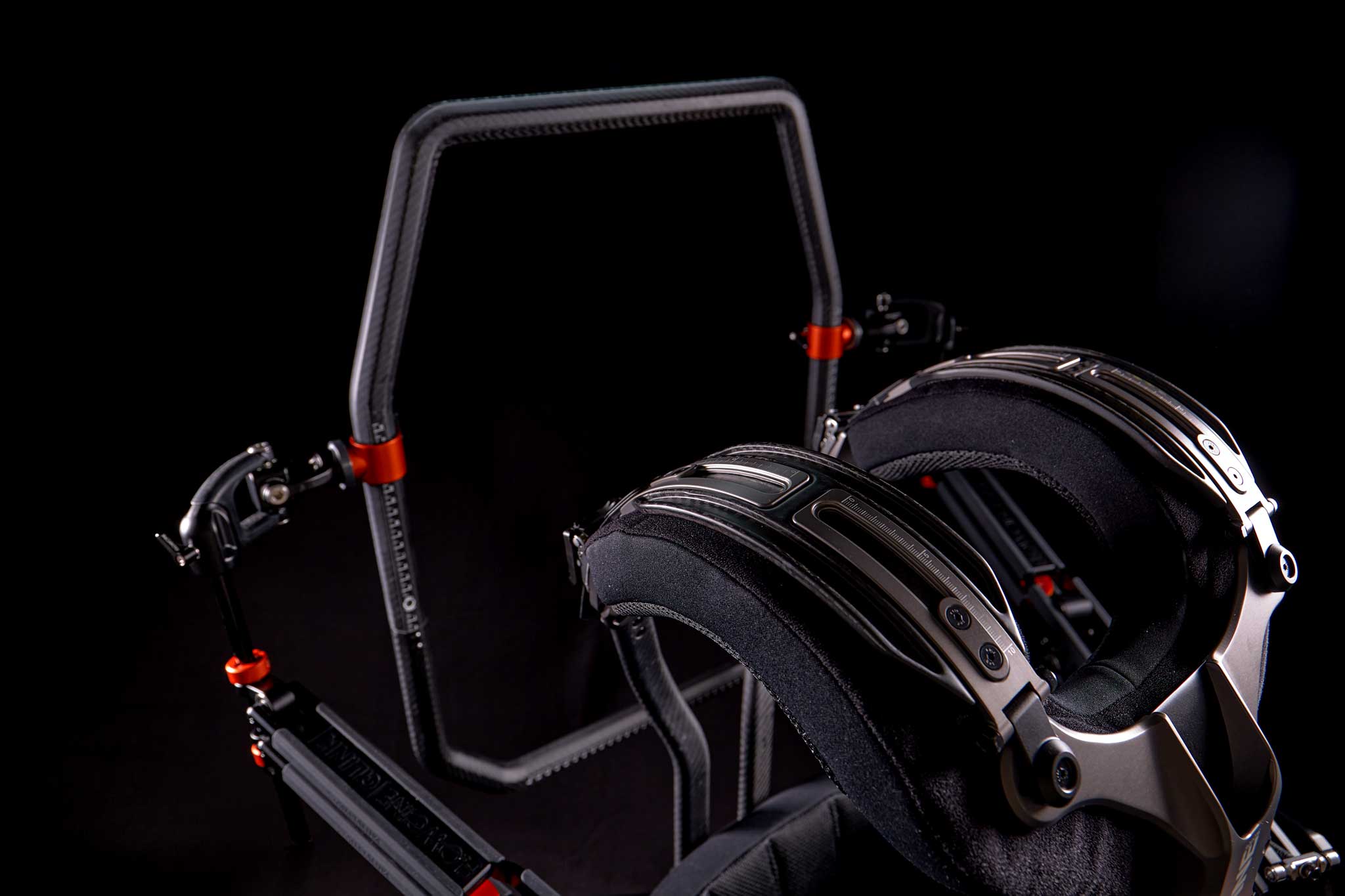

The GLINK comes with the xSPINE vest. It is the most customizable vest on the market, thanks to its many adjustment points and padding options.

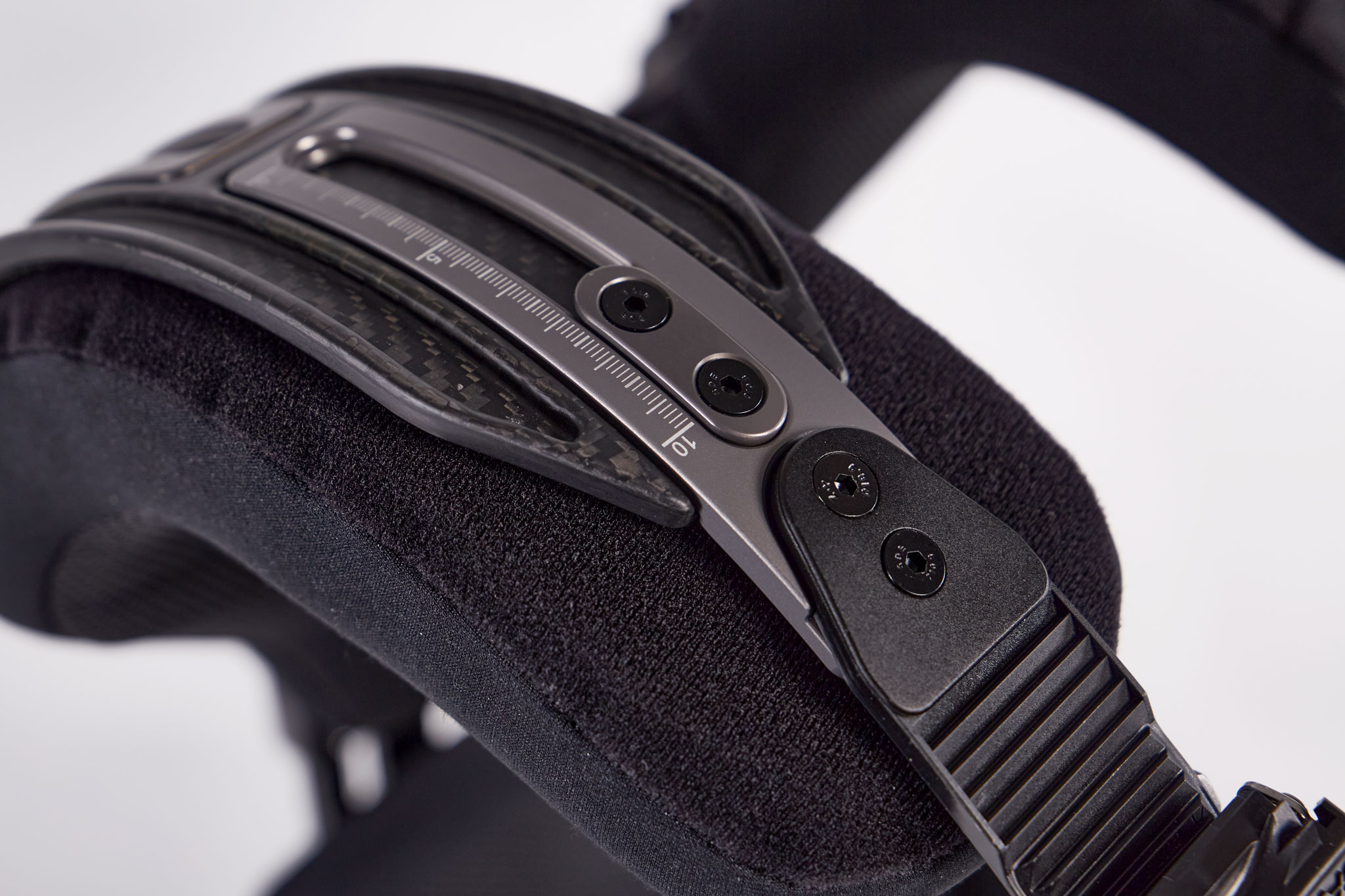

The front and back panels can be extended and contracted to adjust the length of the vest. The shoulder panels and hip panels can adjust the width of the top and bottom sections of the vest. The angled shoulder adjustments can change the width and angle of the shoulders.

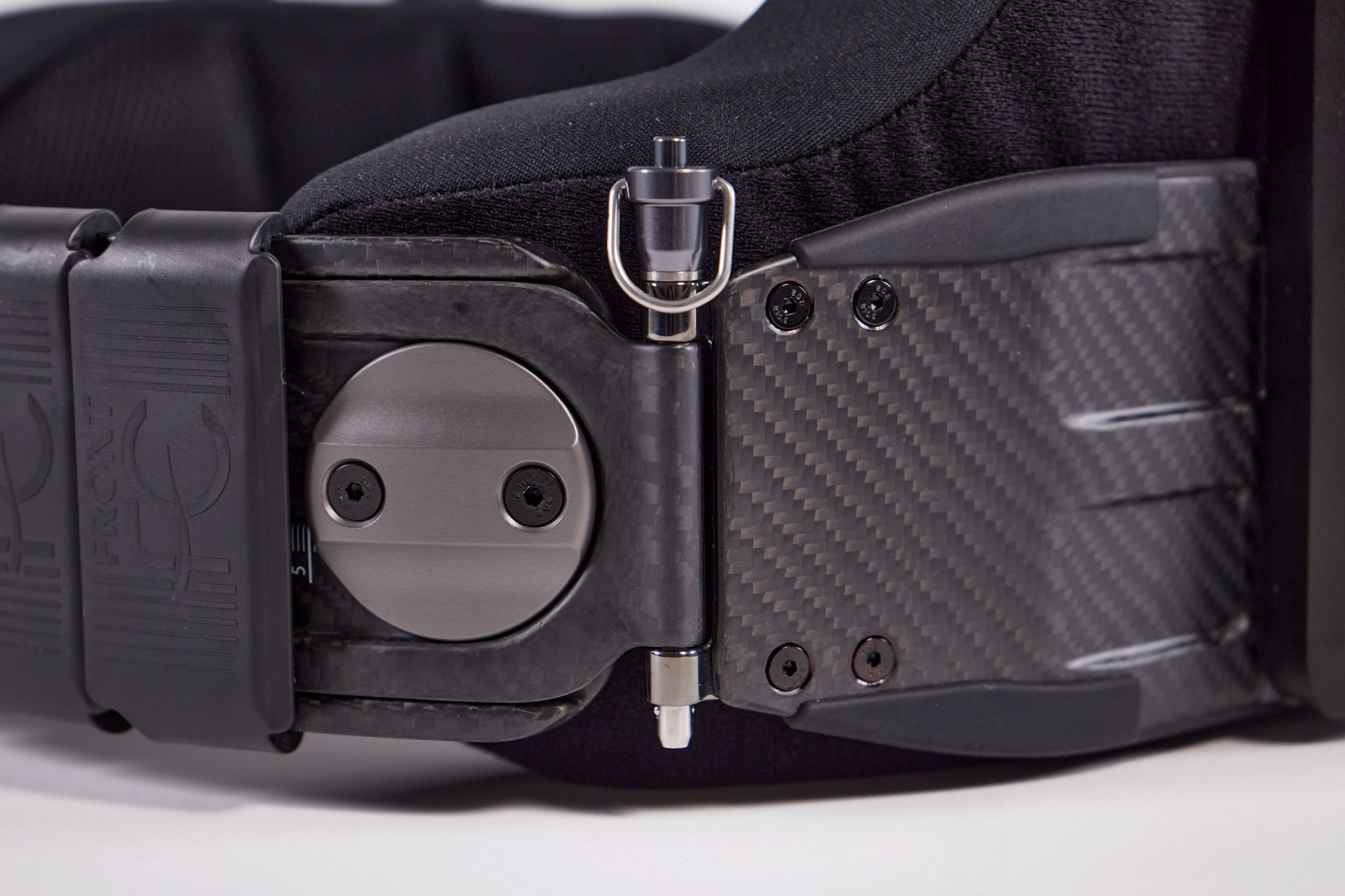

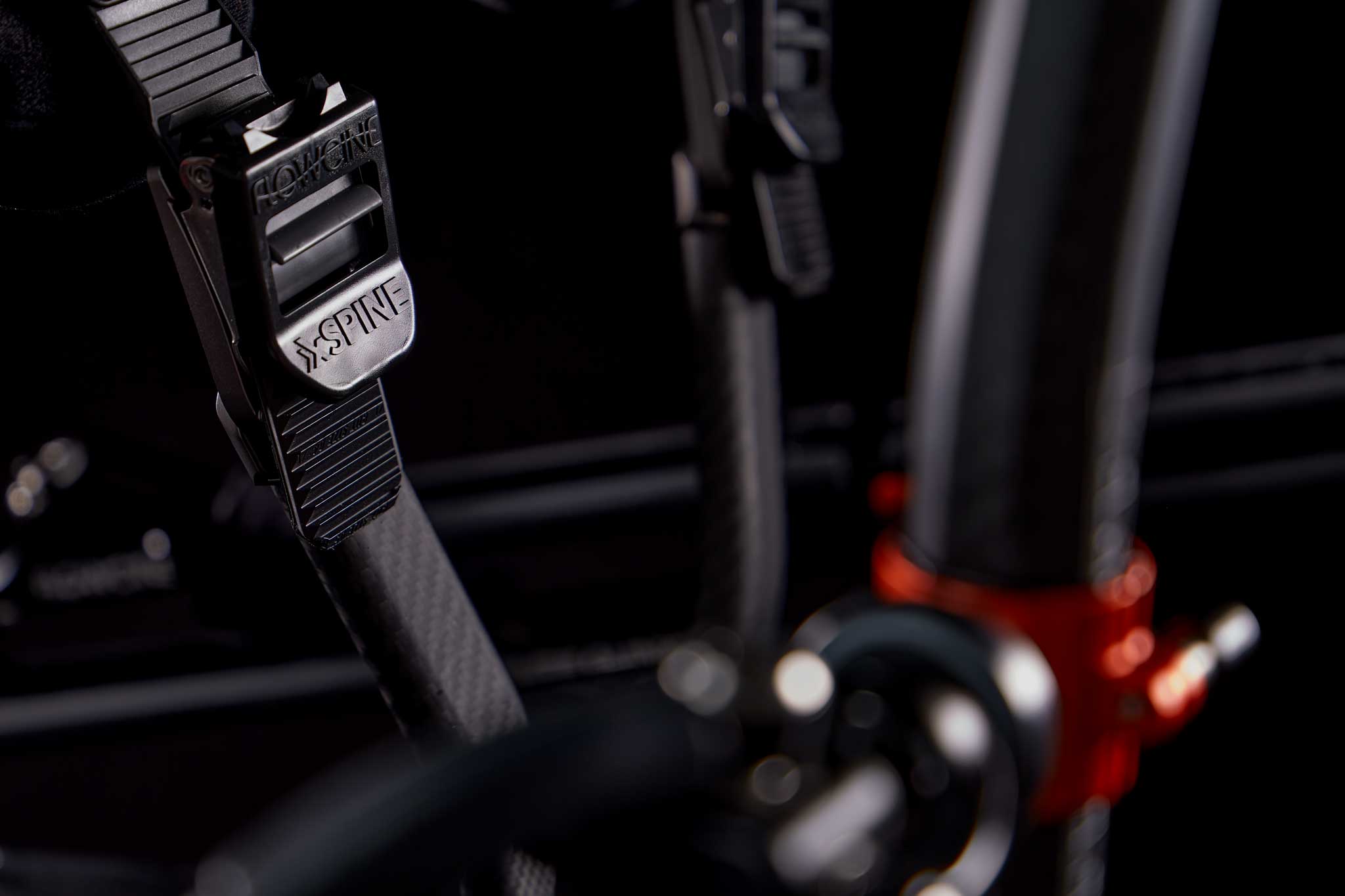

The xSPINE incorporates dual locked ladder strap adjustments in the front, quickly enabling the operator to adjust settings on the fly with no accidental openings. This allows the operator to make adjustments safely, even while still carrying a heavy payload.

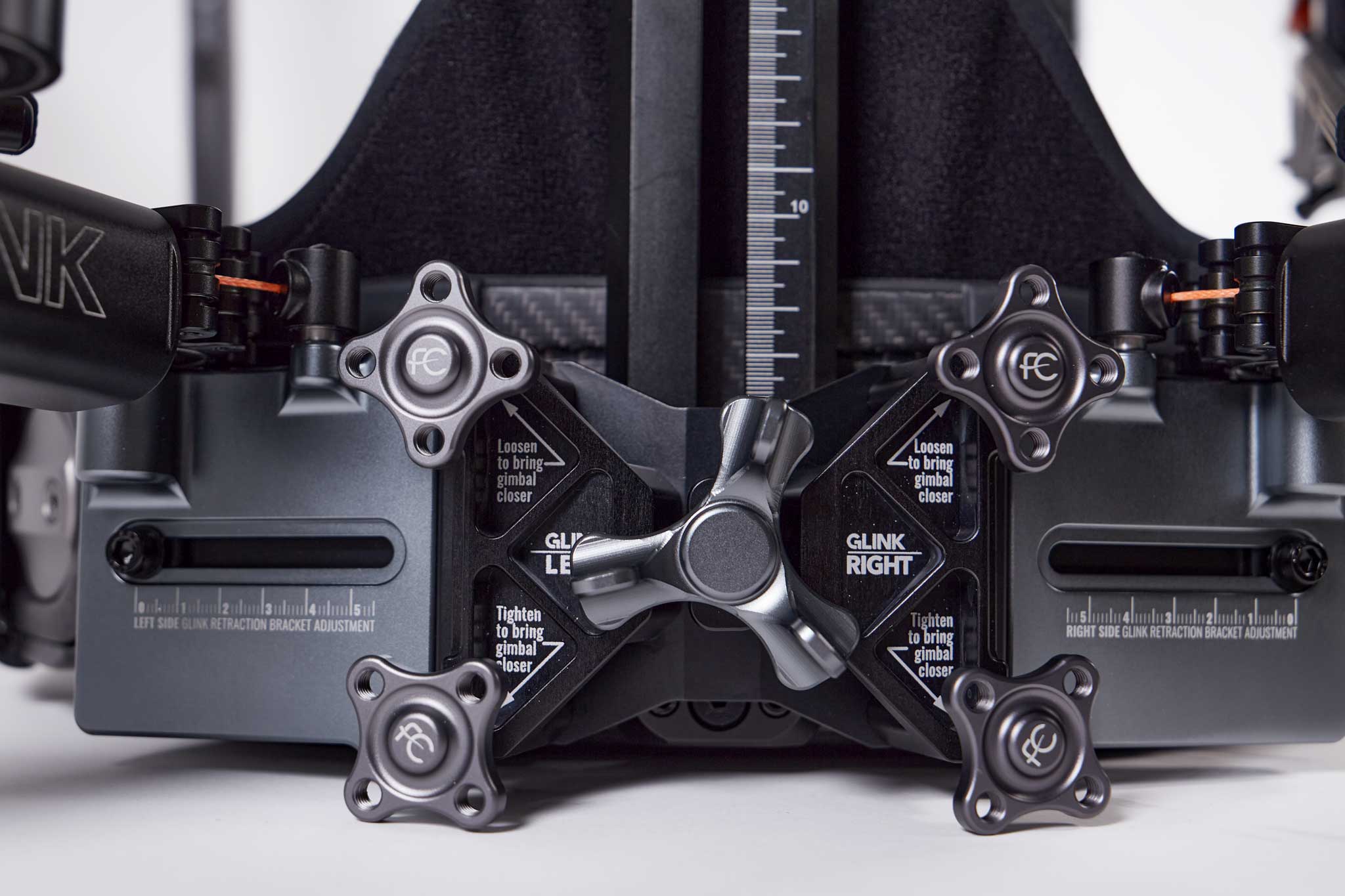

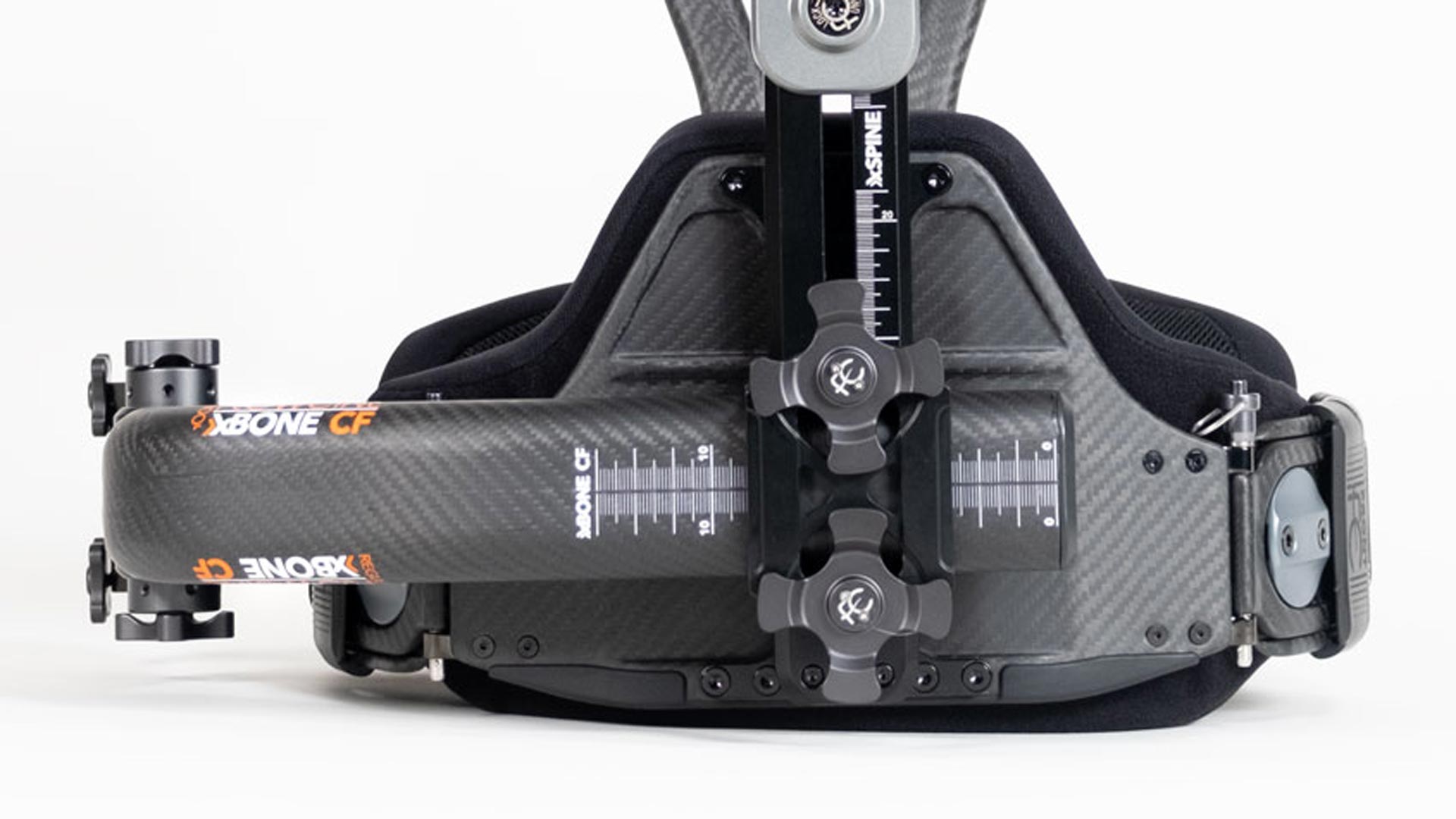

The GLINK socket blocks mounts onto the back. The xSPINE is a universal operator’s vest; designed to be compatible with a wide range of mounting options that are quick and easy to interchange.

We currently have mounting options for the following products :

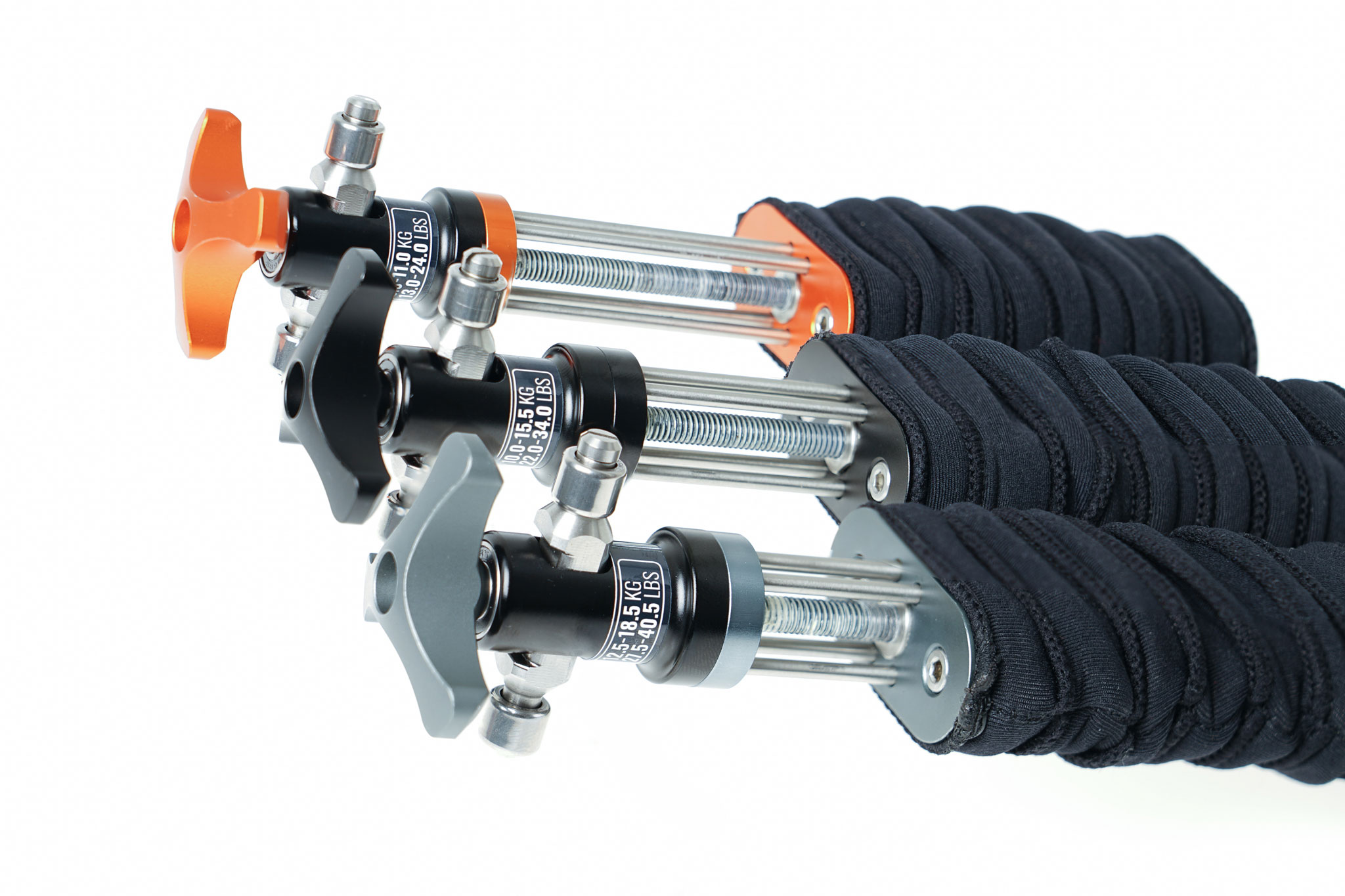

Introducing the GLINK Spring Cores

The GLINK ships with a selection of one to four pairs of our polymer spring cores, depending on the package. Each spring core has a smooth and linear lifting capacity.

They perform their best when being used near their maximum weight capacity. Because of this, each spring core has a weight range of about 5 kg / 11 lbs, allowing the operator to fine-tune the GLINK to optimal performance.

Orange: 6.0-11.0 kg – 13.0-24.0 lbs
Black: 10.0-15.5 kg – 22.0-34.0 lbs
Grey: 12.5-18.5 kg – 27.5-40.5 lbs
Blue: 18.0-24.9 kg – 39.6-55.0 lbs

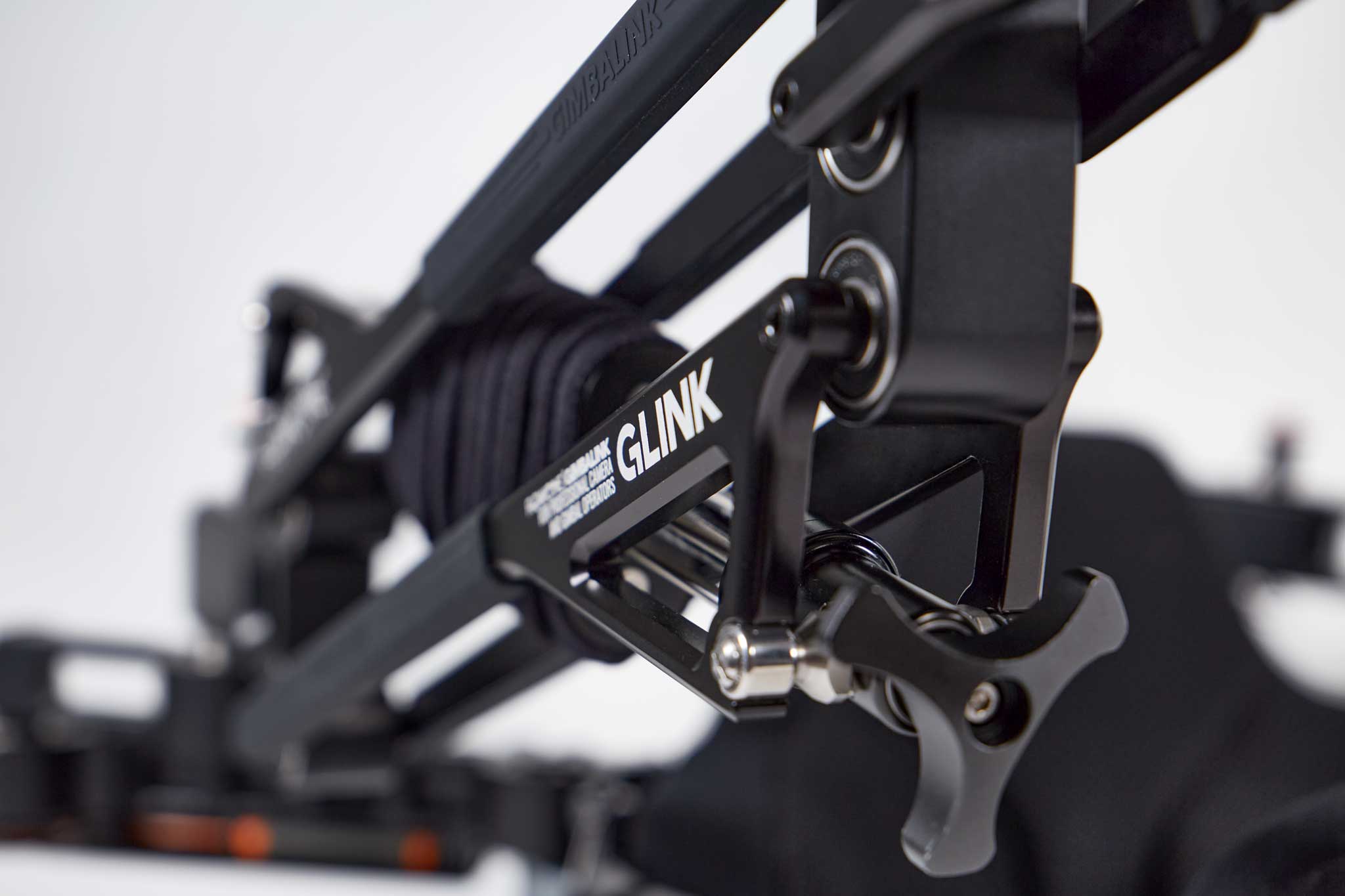

The GLINK spring cores have tool-less knobs to fine tune the tension.

xSPINE vest
GLINK arms
Full carbon fiber ring
1 x Spring core set
2 x CF ring feet

xSPINE vest
GLINK arms
Top part carbon fiber ring
2 x Spring core sets
xSPINE case
GLINK case
Docking station

xSPINE vest
GLINK arms
Full carbon fiber ring
3 x Carbon fiber ring feet
4 x Spring core sets
xSPINE case
GLINK case
Docking station
2 x Monitor bracket
xSPINE babypin mount

Specifications:

Weight	23 kg
Dimensions	68 × 53 × 38 cm

In the box:

GLINK MAX
x1 Glink Pelican Air Flight Case with custom foam
x1 xSPINE Vest
x1 xSPINE Peli AIR 1605 Case with custom foam
x1 Socket Block
x2 Retraction Brackets
x2 Isolation Arms and Arm Posts
x1 Carbon Fiber Full Ring (top and bottom)
x1 Docking Station
x3 CF Ring Feet
x2 Monitor Clamps for CF Ring
x1 Dovetail Tuner
x2 Tool Clip-On
x1 xSPINE Baby Pin
x2 Blue Spring Cores
x2 Grey Spring Cores
x2 Black Spring Cores
x2 Orange Spring Cores
Tools: x1 bag with spare parts/screws, x1 allen key 5x150mm, x1 M4 hex wrench, x2 rip tie black, x1 303 Aero Space spring core protection.

GLINK MEDIUM
Two pairs of spring cores of the customer’s choosing are included.
1 x Glink Pelican Air Flight Case with custom foam
x1 xSPINE Vest
x1 xSPINE Peli AIR 1605 Case with custom foam
x1 Socket Block
x2 Retraction Brackets
x2 Isolation Arms and Arm Posts
x1 Carbon Fiber Half Ring (top)
x1 Docking Station
x1 Dovetail Tuner
Tools: x1 bag with spare parts/screws, x1 allen key 5x150mm, x1 M4 hex wrench, x2 rip tie black, x1 303 Aero Space spring core protection.

GLINK MINIMAL
One pair of spring cores of the customer’s choosing are included. Glink Minimal packs in shipping box, no pelican case.
x1 xSPINE Vest
x1 Socket Block
x2 Retraction Brackets
x2 Isolation Arms and Arm Posts
x1 Carbon Fiber Full Ring (top and bottom)
x3 CF Ring Feet
Tools: x1 bag with spare parts/screws, x1 allen key 5x150mm, x1 M4 hex wrench, x2 rip tie black, x1 303 Aero Space spring core protection.
