Front Mount

xSPINE Front Mount for steadicam operators. Available in regular or short lengths.

545.00 €

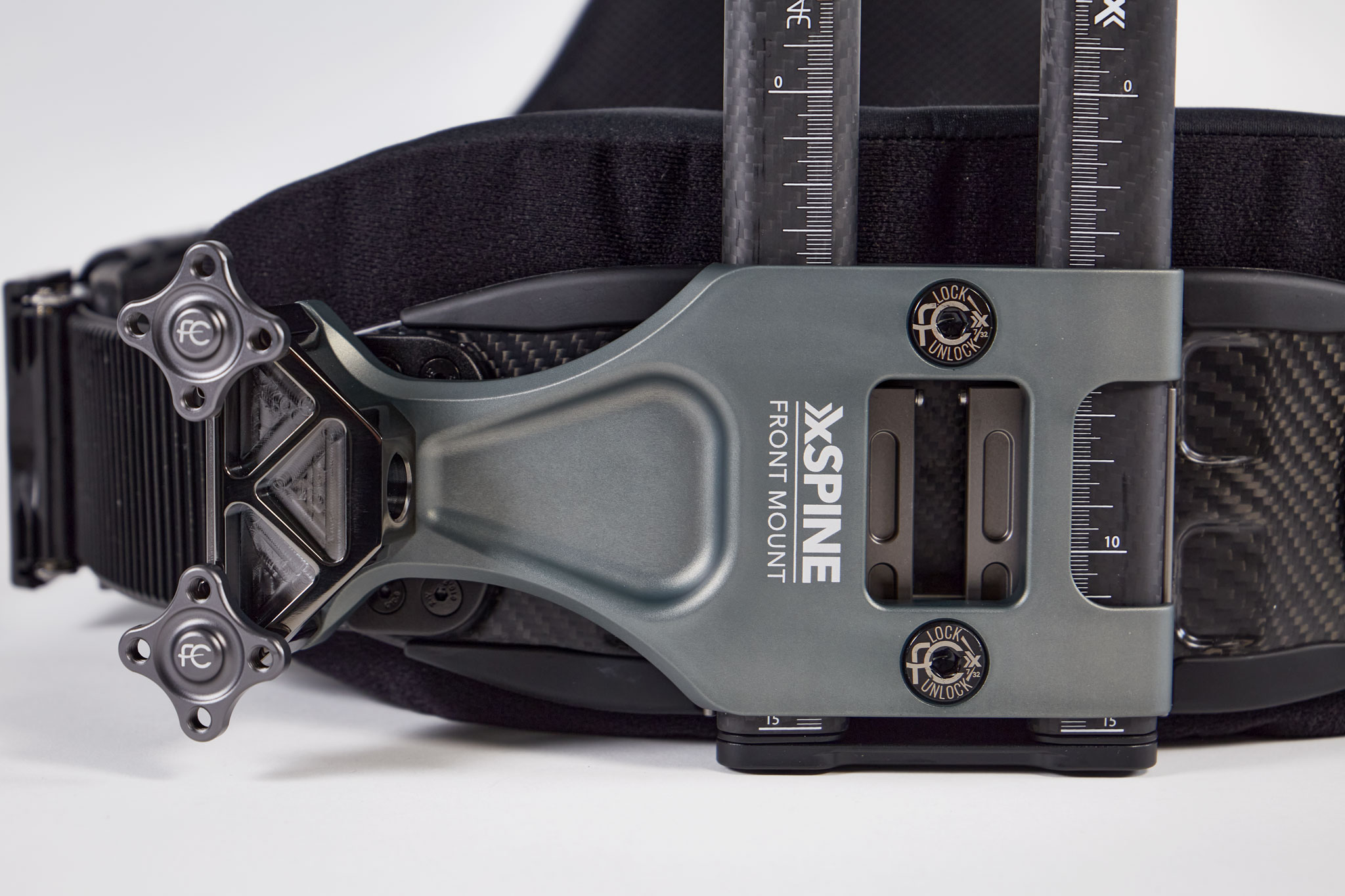

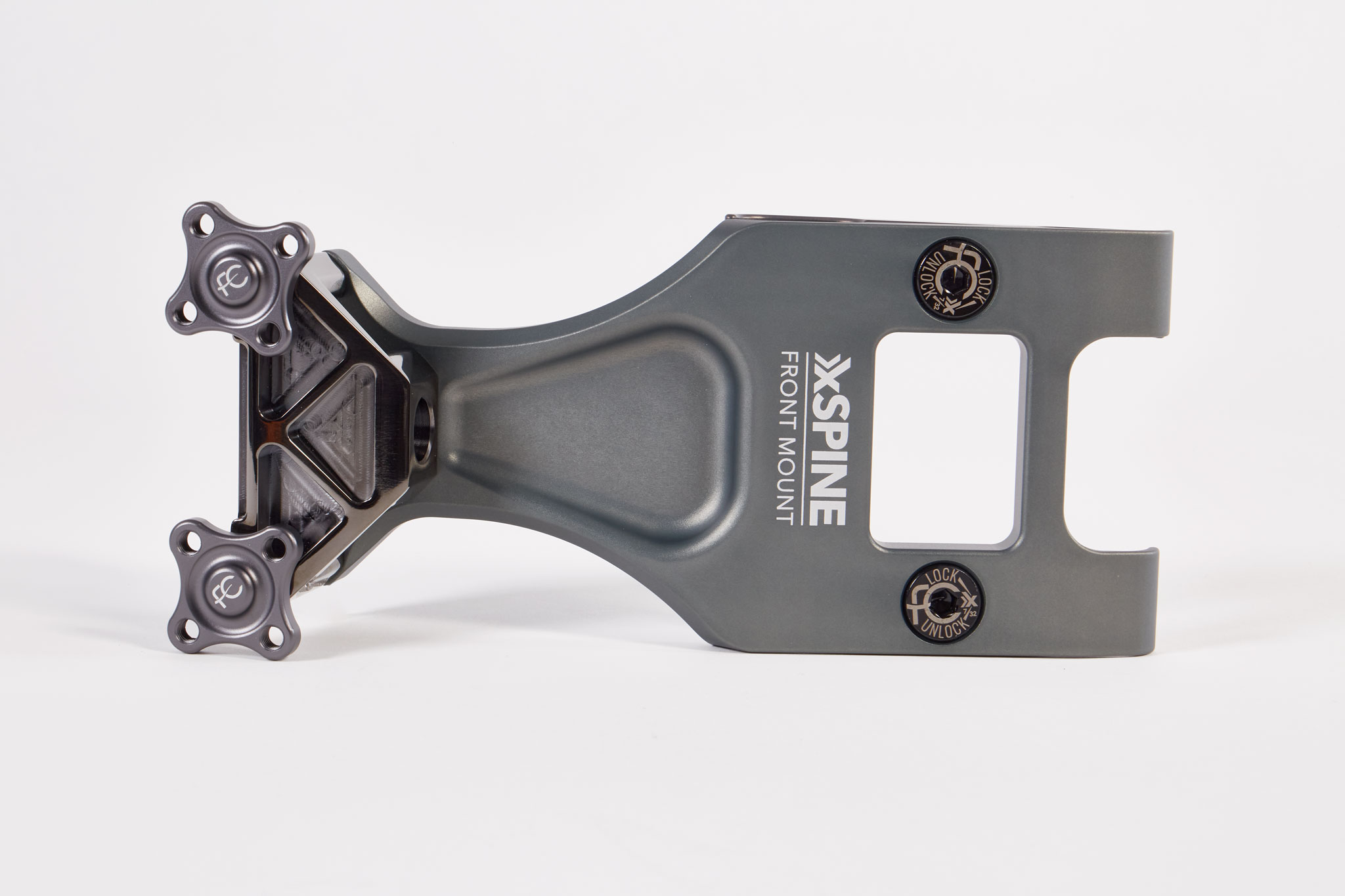

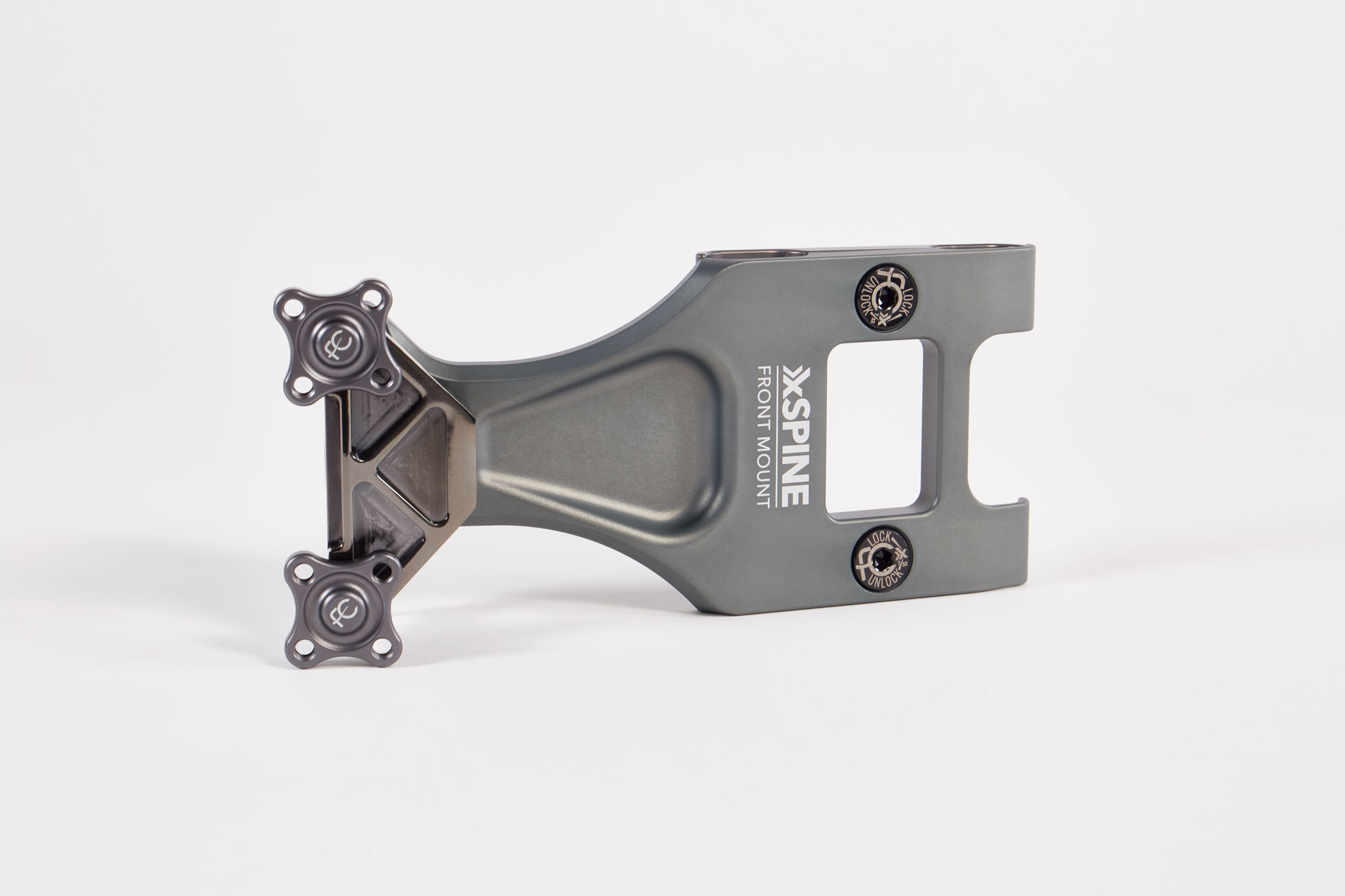

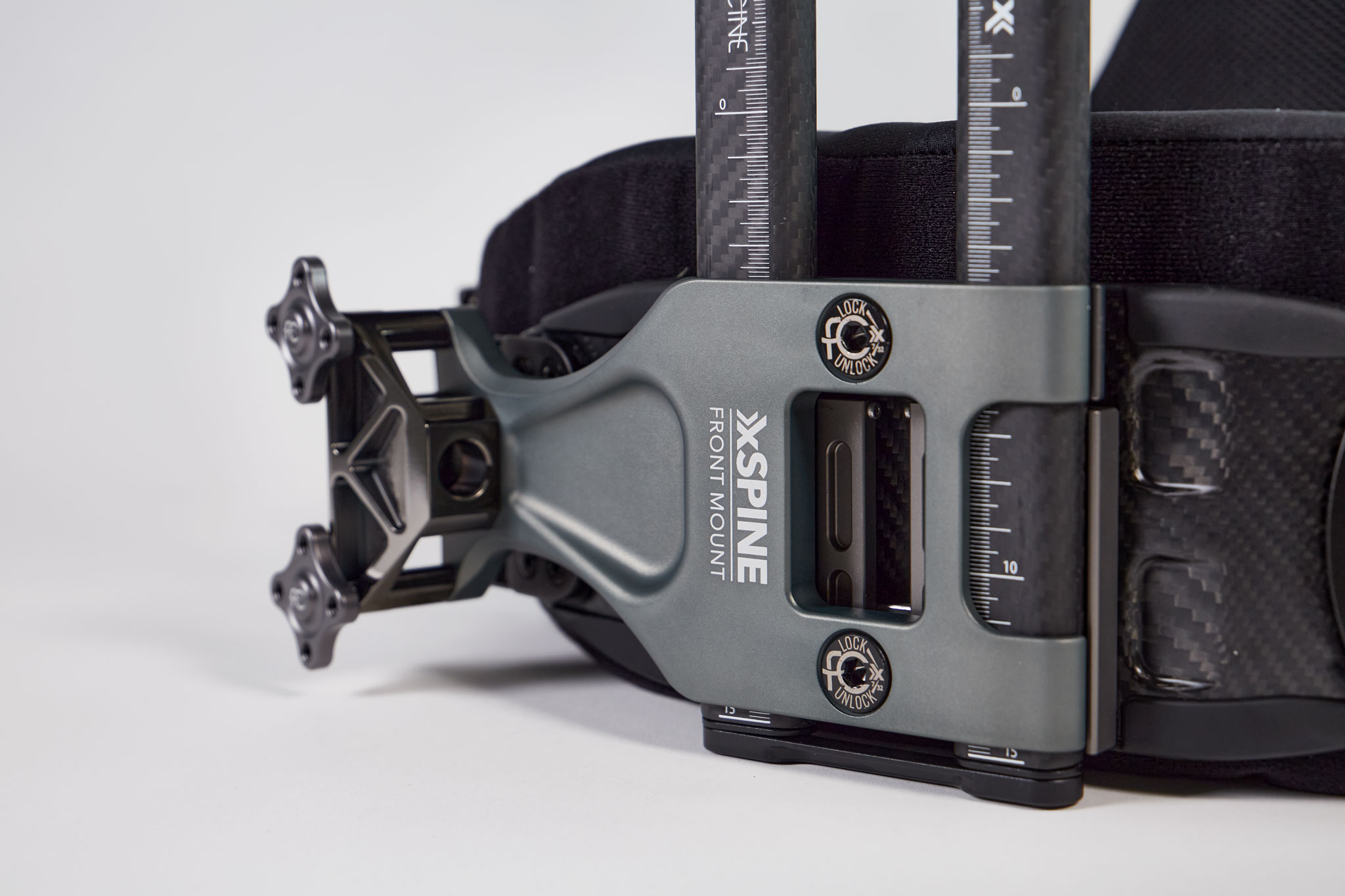

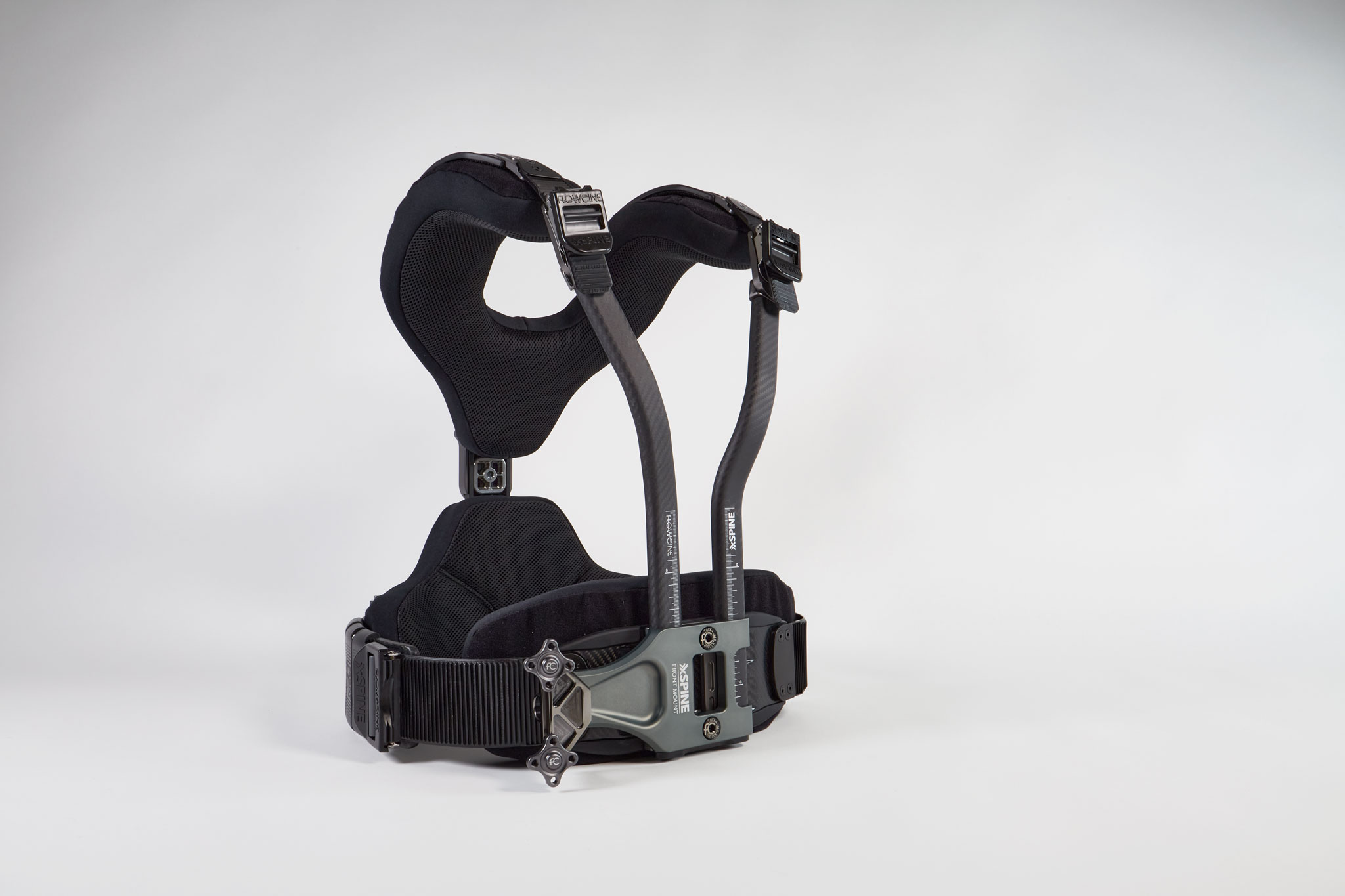

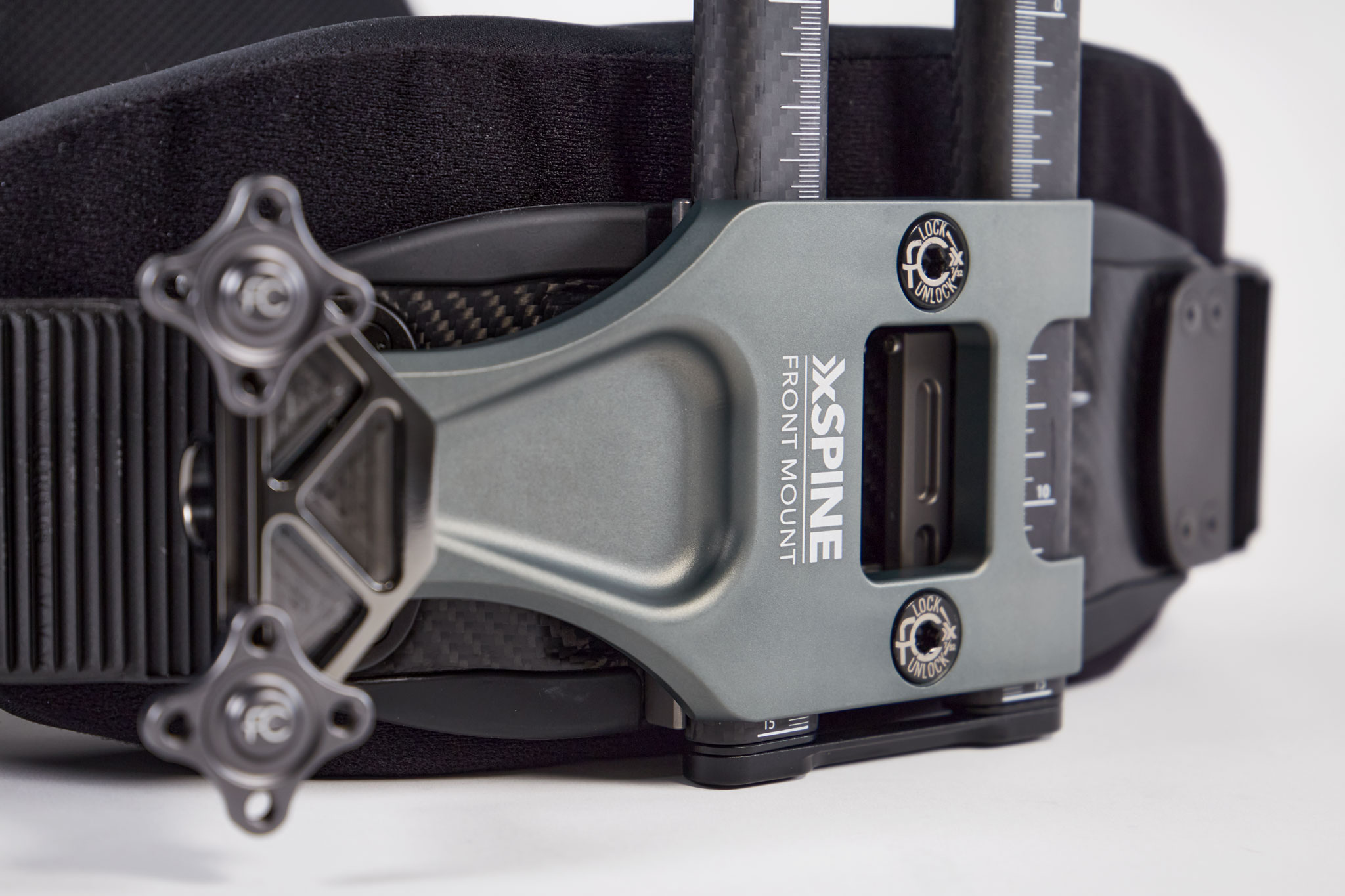

The xSPINE Front Mount is mounted at the front of the xSPINE to attach your chosen steadicam arm. It replaces the ordinary xSPINE front plate when being in use.

The Front Mount has a standard universal socket block compatible with steadicam arms such as the xARM, GPI Pro or Tiffen arms.

The xSPINE Front Mount can slide up and down the CF bars to sit at any preferred position, giving the operator 50mm of height adjustment. It can be mounted exceptionally low for even greater clearance as there are no obstructing belt buckles.

There are two front mount options for the xSPINE. The Regular Front Mount and the Short Front Mount.

We have the xSPINE Regular Front Mount as our classic, mostly commonly used front mount. We have the xSPINE Short for operators who prefer the arm closer to their body or for slightly longer arms like the xARM Neo.

Both Front Mounts come with a longer and a shorter socket block screw which can be swapped depending on whether you’re goofy or regular.

*The color of the front mounts may vary slightly.

Both Front Mounts can be mounted either regular or goofy just flip the side. They are only compatible with the Flowcine xSPINE vest.

The weight of the Front Mount is 550g.

They have two 3/8 “-16 UNC screws and the bottom one connects to the nut residing inside the xSPINE Front plate. The other screw is mounted onto the supplied front mount bracket placed behind the CF bars.
