Mount Ronin 2 to the Tranquilizer

In order to mount the Ronin 2 to the Tranquilizer, remove the Mitchell plate and attach the Ronin 2 straight to the rods:

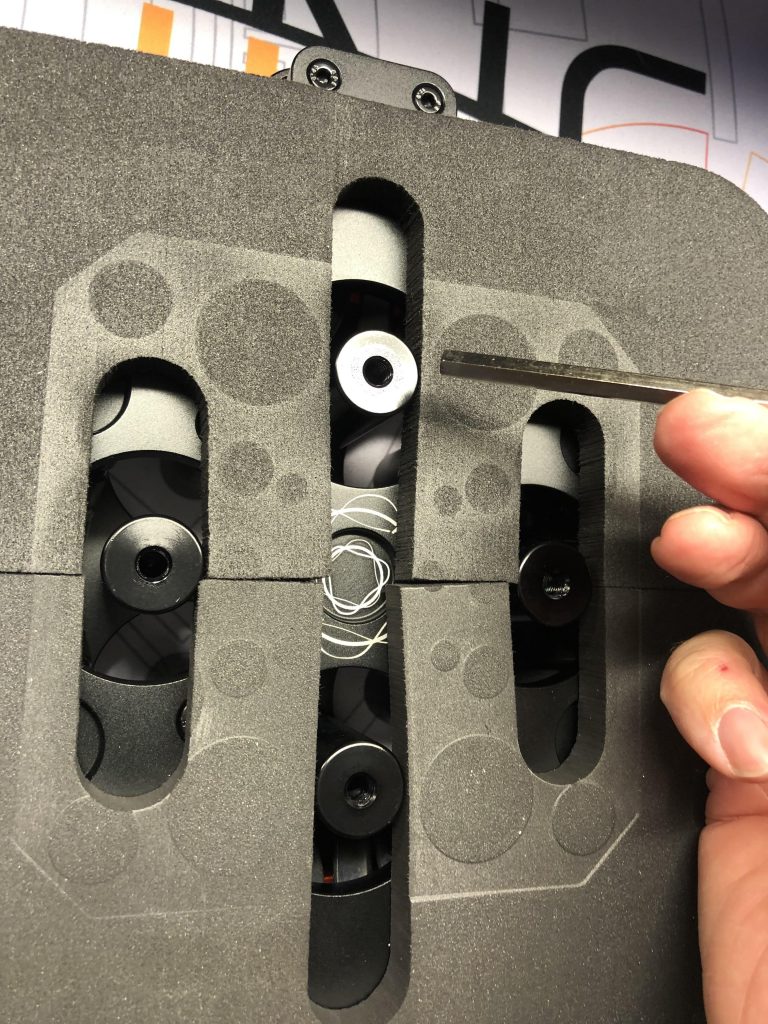

• Remove 4 x M6 from Mitchell plate
• Notice the four rods with M6

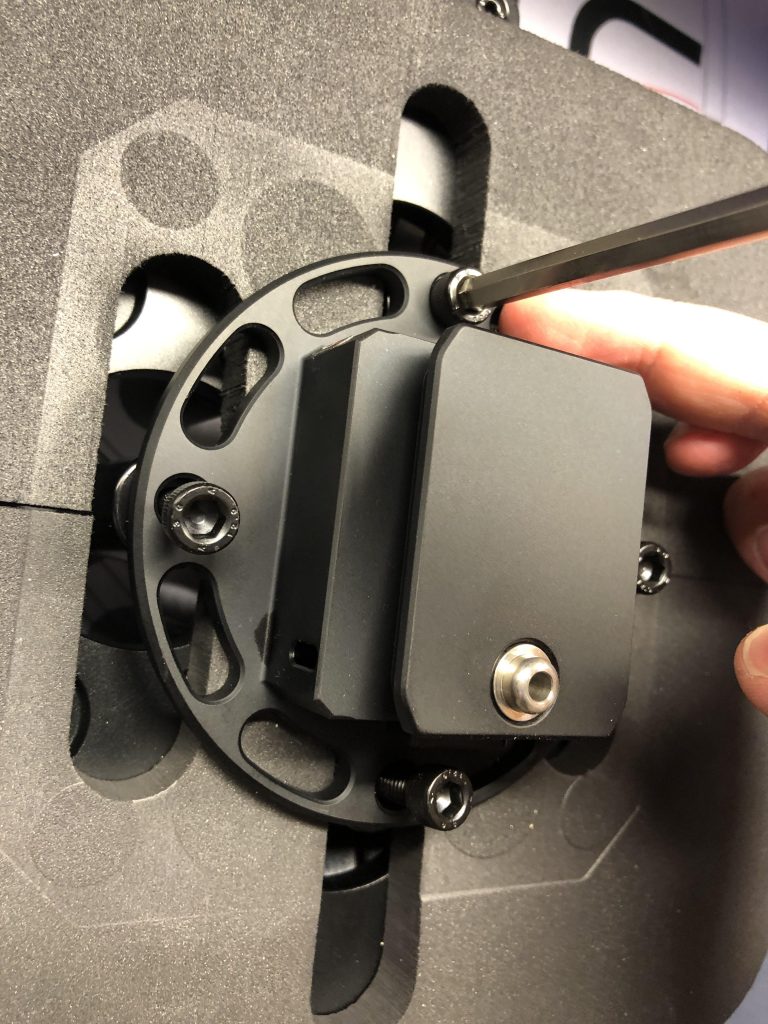

• Align DJI universal mount over the rods, do not use Mitchell plate!
• Attach with the 4x M6. Note you can use a washer between the DJI universal mount and screw head.
